1. Product Basic Information

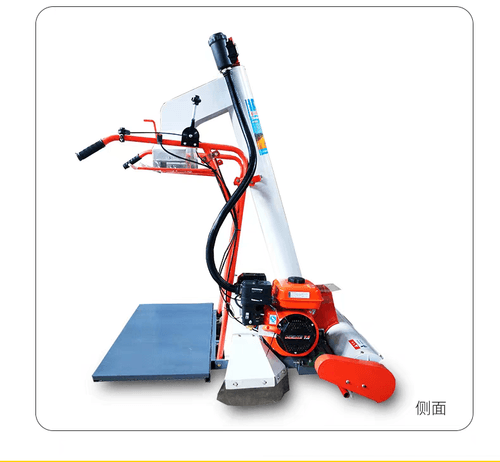

Product Type: Free-style grain collection and bagging machine

  Model: XHS-125-2

Overall Dimension (LengthWidthHeight): 1.15 * 1.3 * 1.5 m

Gross Weight: 120 KGS

Power Source: 170F gasoline engine

2. Two Optional Versions

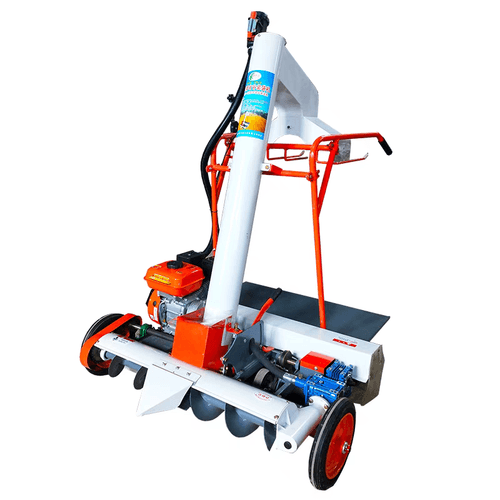

Spiral Screw Conveyor Version Conveying method: spiral screw conveyor, can be transported as separate units Working efficiency: 7500KGS per hour

Scraper Type Version Conveying method: scraper type, cannot be transported as separate units

3. Advantages of Spiral Screw Conveyor Version

The spiral screw version has 5 significant advantages compared to the scraper-type design:

1. High working efficiency.
2. Strong adaptability to grain piles. It can collect grains smoothly even if the dried grain layer is quite thick, with no blockage during operation.
3. Detachable structure. It can be broken down and compressed for shipment, easy to install on site.
4. Long service life. The screw conveyor is durable, and the outlet end has a very low malfunction rate.
5. Dual-outlet design. Two grain outlets support sequential bag filling. Operators can replace bags without shutting down the machine, which improves working efficiency and saves fuel.

4. Application Scope

This machine is suitable for collecting and bagging corn, wheat, rice, soybeans and other grain crops. It can be used for outdoor field grain collection and grain bagging work at storage yards.
