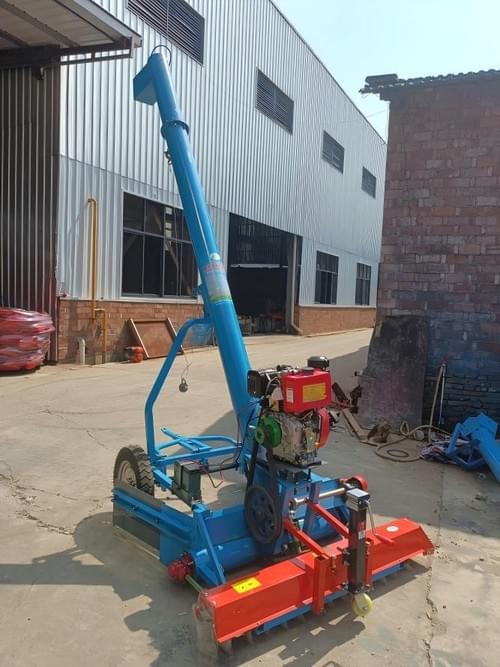

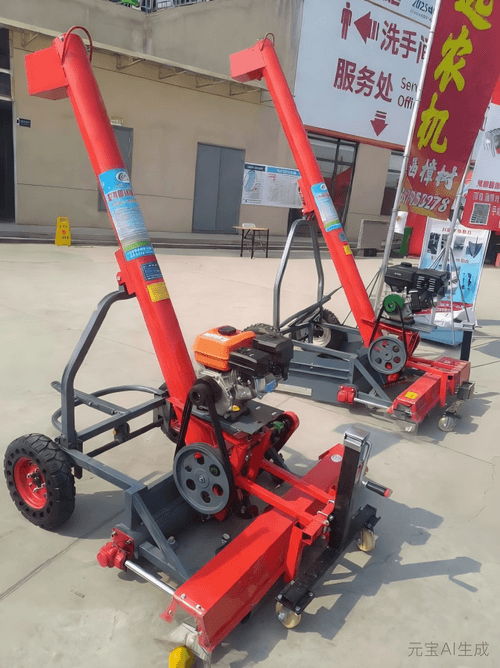

Road-based Grain Collection Machine

Product Basic Information

Product Type: Road-based grain collection machine Power Options: Gasoline engine version / Diesel engine version Vertical height (meter): 2.5m / 3.1m / 3.4m / 3.6m Grain collection width: 1.4m Gross Weight: 250 KGS Work efficiency: 20,000 pounds per hour

Complementary Power Source

• 190F gasoline engine (rope-operated start)
• 186F air-cooled diesel engine (electrically startable)

Additional Features

• Brush-based cleaning function
• The export section can separate into smaller parts

Product Advantages

1. The spiral screw auger design enables rapid grain collection.
2. It is not affected by the thickness of the grain being collected. It works well no matter how thick the grain pile is, and the machine will not get clogged.
3. The spiral screw auger is made from high-quality manganese steel, offering long service life and great durability.
4. The machine can be shipped in separate parts and is easy to assemble on site.
5. The distance between the rake opening and the ground can be adjusted. When collecting rice, raise the rake opening to reduce grain damage rate.

Scope of Application

Suitable for various types of grains such as corn, wheat, rice, and soybeans.
